Description
Streamline Bariatric Tilt in Space Cradle
Optional accessories available such as a fully adjustable and removeable foot rest, thoracic supports and hip supports. This cradle is available in a bariatric friendly size and the option of either a manual or electronic tilt action, which provides a tilting angle between 75° and 35°. Aperture available, and sits comfortably over our commode facility.

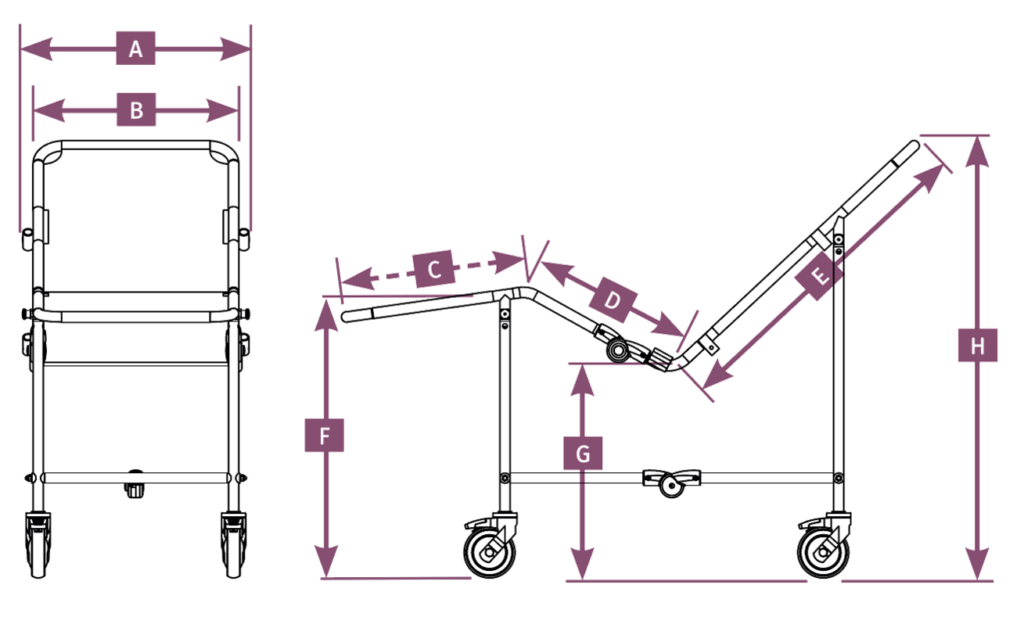

Dimensions
| Open | Folded | |
| A (cradle width) | 557mm / 22” | 557mm / 22” |
| B (overall width) | 505mm / 20” | 505mm / 20” |
| C (calf) | 463mm / 18.2” | 463mm / 18.2” |
| D (thigh) | 405mm / 16” | N/A |
| E (back length) | 812mm / 32” | 812mm / 32” |
| F (knee length) | 714mm / 28.25” | N/A |
| G (hip height) | 534mm / 21” | N/A |
| H (overall height) | 1074mm / 42.25” | 250mm / 10” |
| I (overall length) | 1420mm / 56” | 925mm / 36.4” |
| Overall folded dimensions | N/A | 557(W) x 1305(L) x 250(H) |
